Gallery
1 of 1
Gap
There should be a gap of about 0.030 inches between the bottom edge of the barrel throat and the top of the feed ramp in the frame.
1 of 1
Throat the Barrel
A Dremel tool can be used to carefully throat an M1911 barrel.
1 of 1
Polishing the Feed Ramp
Polishing the frame feed ramp is often best accomplished simply with 600-grit or finer sandpaper wrapped around a wooden dowel.
1 of 1
Ejection Reliability
Ejection reliability of a gun with the high G.I. ejection port is enhanced by lowering the port and flaring it at the rear.
1 of 1
Feed Ramps
Frames for different calibers have different feed ramps. Shown here are frames for the .45 ACP and 9 mm Luger.
1 of 1
Guide Rods
Guide rod heads, particularly of aftermarket, full-length guide rods, may contact the lower barrel lugs and should be relieved for clearance.
1 of 1
Proper Barrel throat
A properly throated M1911 barrel is shown next to an original G.I. barrel with its minimal throat.
1 of 1

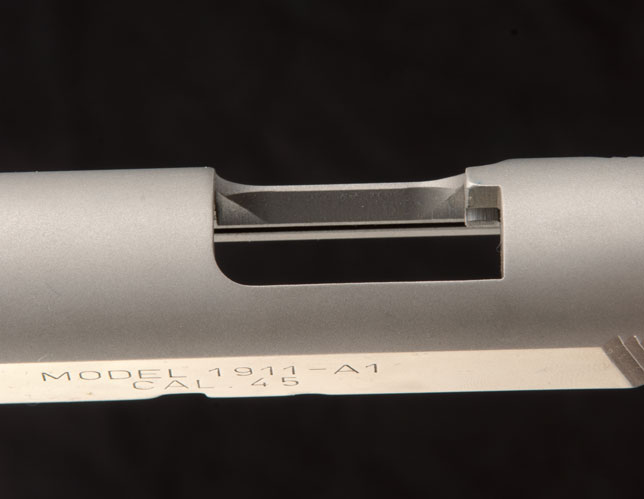

Beveling the Port
In addition to fluting the rear of the ejection port, a gunsmith will also clear or bevel the inside edge of the port to enhance ejection reliability.
1 of 1
Extractor
Beveling and flaring the extractor claw helps the case rim slide under the claw.
1 of 1
Slide Stop
A shallow detent or dimple in the slide stop face can prevent the slide stop from inadvertently rising and causing the slide to lock back prematurely.
