New For 2025: Springfield Armory 2020 Heatseeker

by
posted on May 21, 2025
** When you buy products through the links on our site, we may earn a commission that supports NRA's mission to protect, preserve and defend the Second Amendment. **

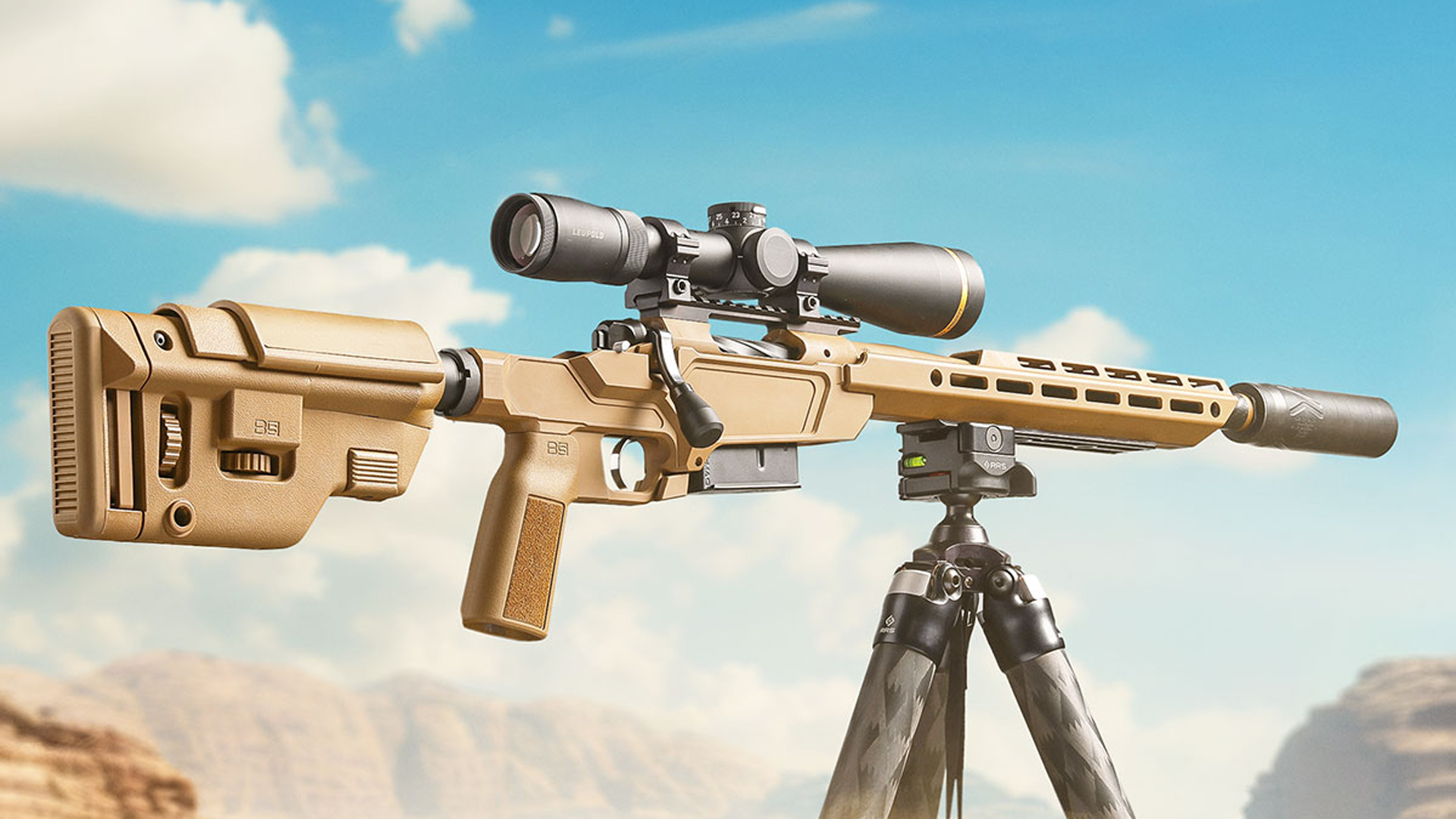

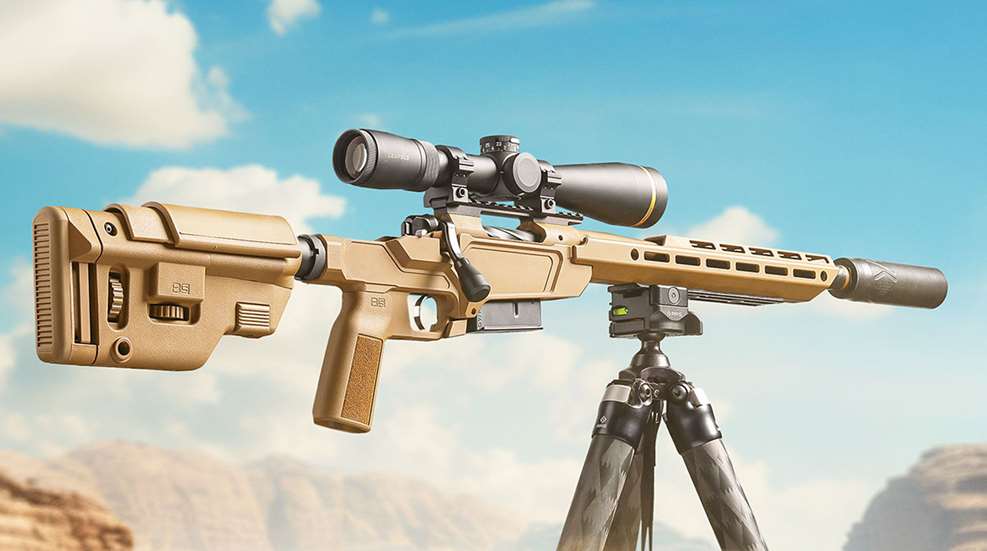

Springfield Armory Model 2020 Heatseeker bolt-action rifle Coyote Brown color fixed on tripod outdoors with a Leupold riflescope attached.
Images courtesy of Springfield Armory.

Springfield Armory made precision affordable with its 2020 series of bolt-action rifles. First was the long-range hunting Waypoint, followed by the backcountry Redline, and then the traditional-styled Boundary. New for 2025, the company is adding another 2020 model with the Heatseeker, a compact chassis rifle built for precision shooting with modern sporting rifle modularity.

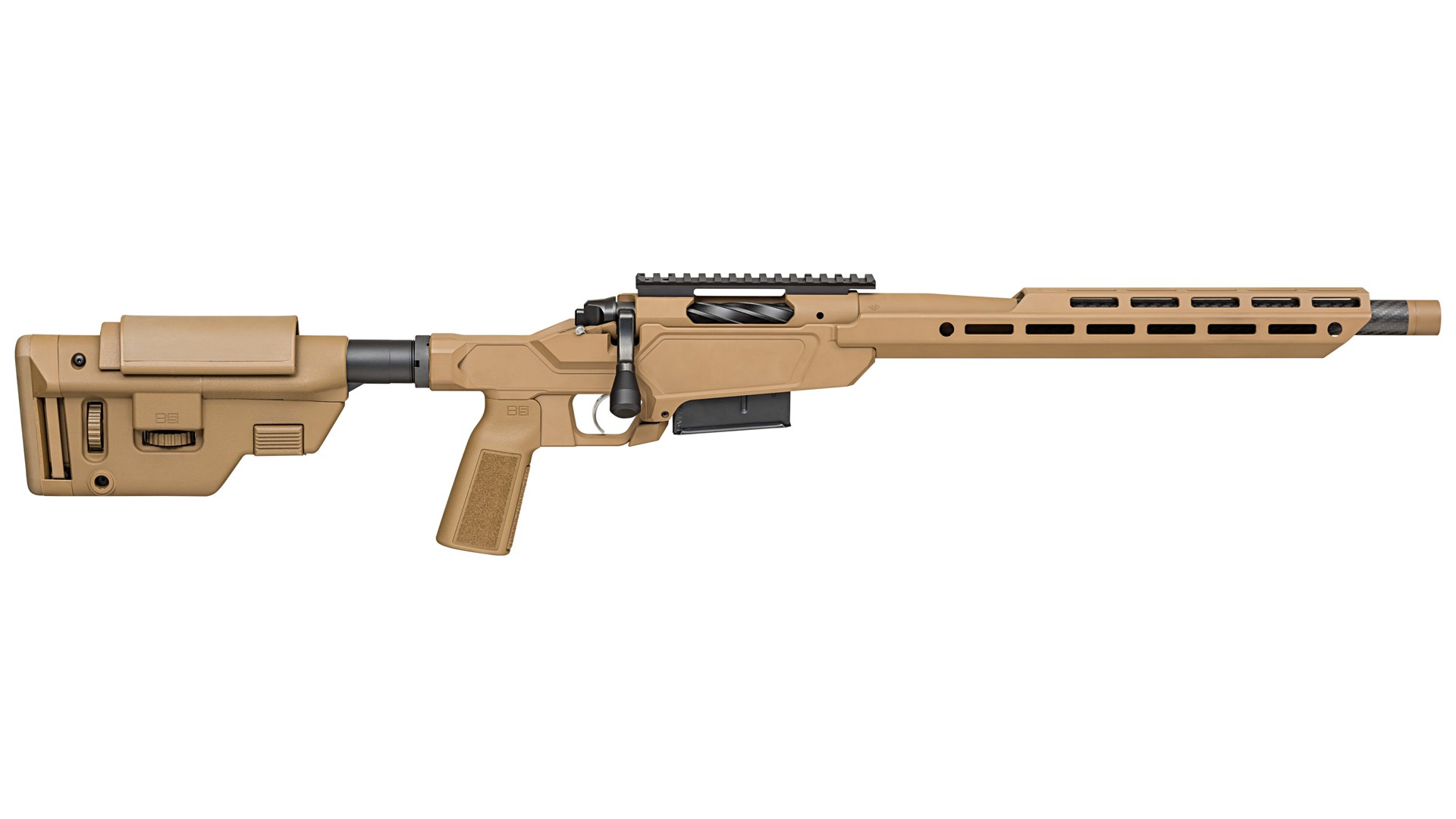

Springfield Armory 2020 Heatseeker bolt-action rifle brown Coyote Brown color right-side view chassis rifle with adjustable stock
The Heatseeker takes Springfield’s 2020 short action and places it into a precision aluminium chassis manufactured by Sharps Bros.

The Heatseeker is based around Springfield’s 2020 short action, with its fluted 4140-steel bolt with nitride finish and precision-cut stainless-steel receiver. A detachable Picatinny rail with an M700 mounting pattern is provided for optics; the fire-control unit is an adjustable model  from Triggertech; and the rifle feeds from an AICS-pattern magazine with one five-round metal version provided. To the action is mated a free-floating 16” BSF stainless-steel barrel jacketed in a roll-wrapped carbon-fiber sleeve and loaded under tension with its muzzle threaded 5/8x24 TPI; a color-matched thread protector is provided.

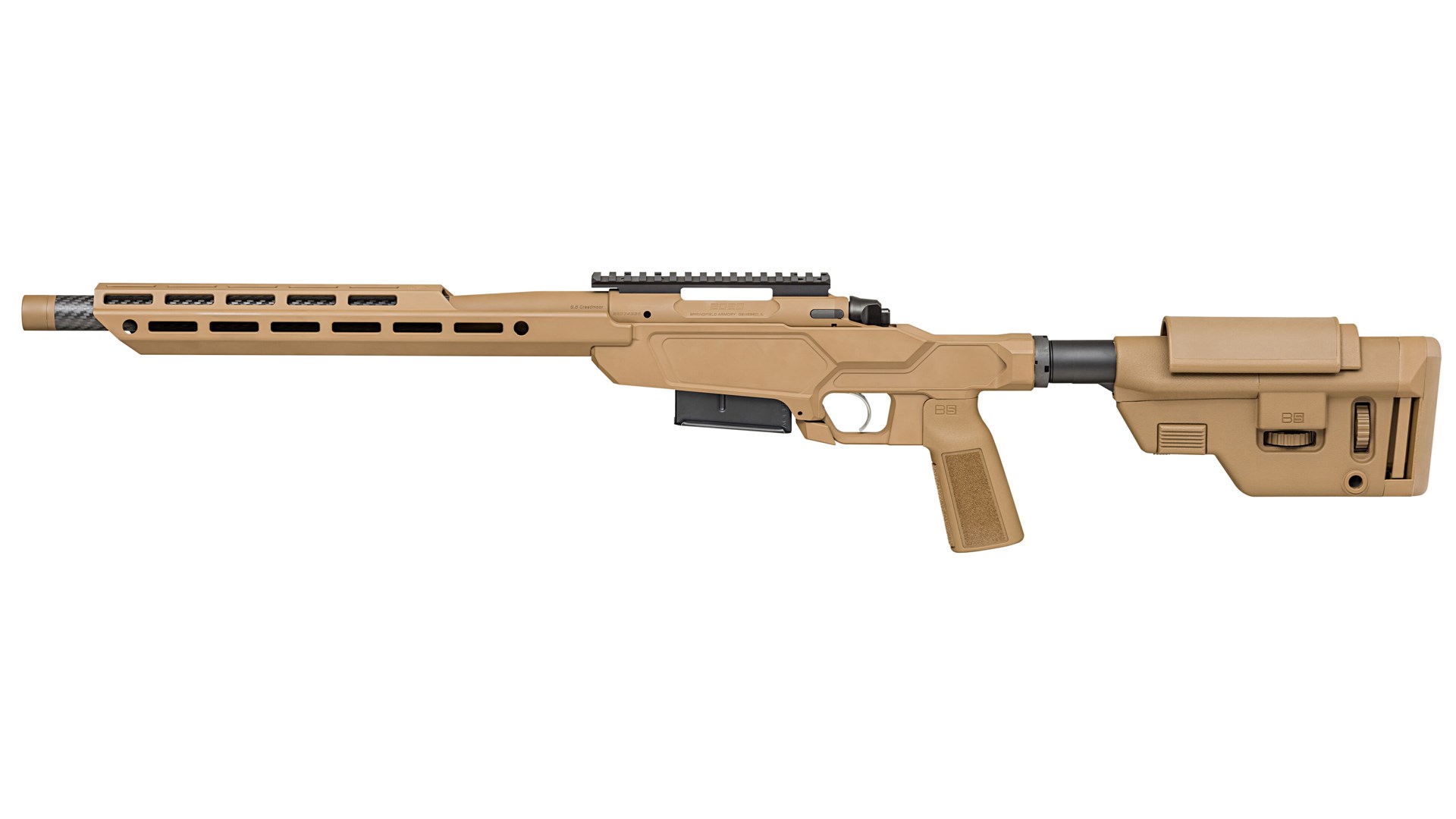

Springfield Armory 2020 Heatseeker bolt-action rifle left-side view Coyote Brown color accessories chassis M-Lok fore-end pistol grip adjustable buttstock
Furniture on the Heatseeker is AR-compatible, with the supplied buttstock and grip sourced from B5 Systems.

The barreled action is placed in a Sharps Bros. Heatseeker two-piece chassis. Machined from a single block of 6061-T6 aluminum (the bare chassis weighs 1 lb., 3 ozs.), its 14” handguard has M-Lok slots on all four sides and two quick-detachable sling swivel spigots per side. The chassis is compatible with AR-pattern pistol grips and an AR-pattern buffer tube, allowing adaptability to a plethora of grips and buttstocks. The Heatseeker comes equipped with a B5 Systems Collapsible Precision Stock (CPS) with adjustable cheekpiece and buttstock, and a B5 P-Grip 23.

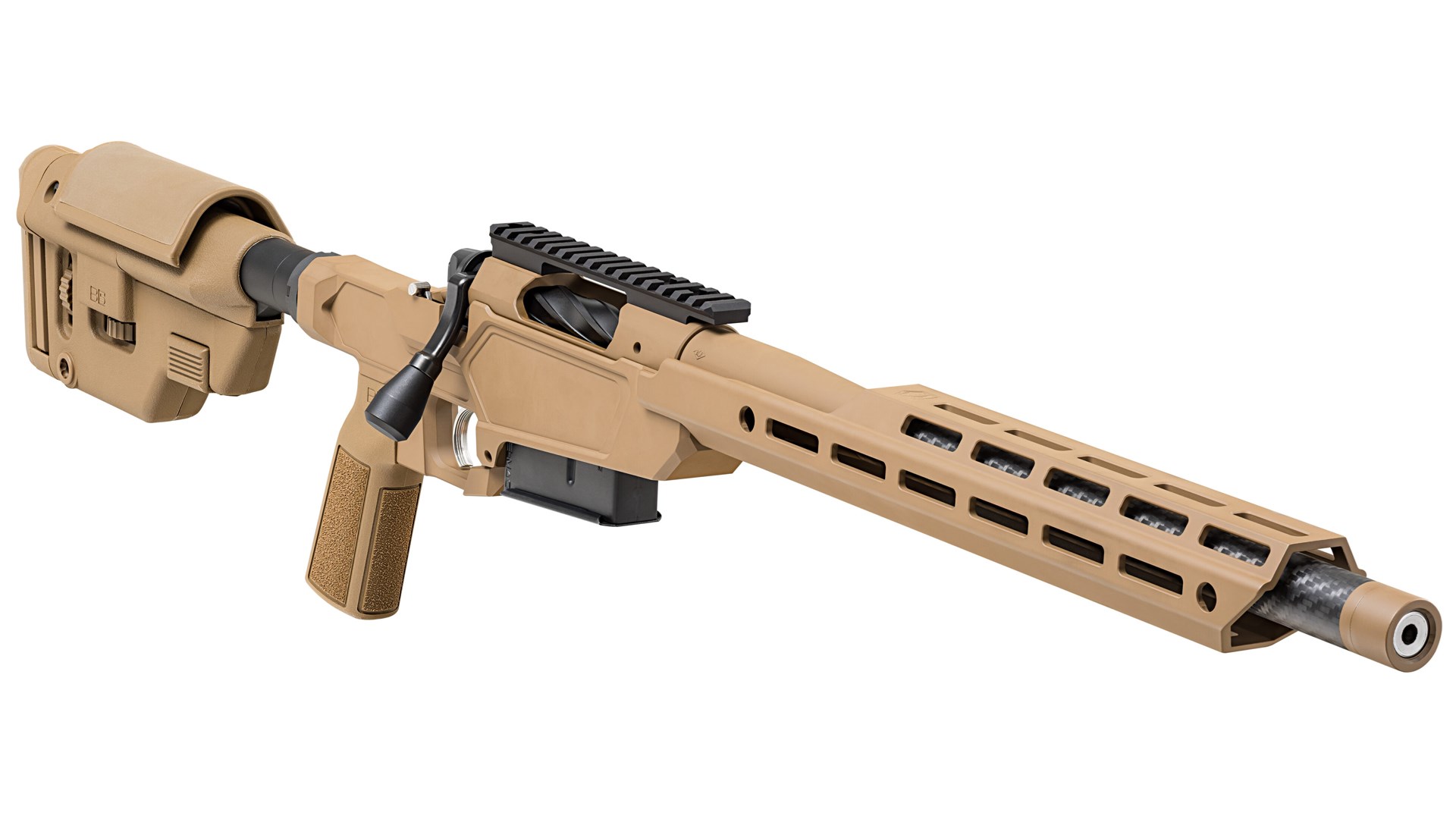

Springfield Armory 2020 Heatseeker bolt-action rifle forward dynamic angle right-side view carbon-fiber barrel threaded muzzle Coyote Brown color accessories aluminum chassis featuring M-Lok slots fully adjustable buttstock
With the Heatseeker, Springfield Armory is adding a compact, modular and suppressor-ready chassis rifle to its catalog of 2020 bolt actions. Image courtesy of Springfield Armory.

Receiver, barrel and chassis are given a Coyote Brown Cerakote finish and the polymer furniture is a matching color. The Heatseeker weighs 7 lbs., 7 ozs. and has an overall length of 35.5" to 39.0", depending on the telescoping buttstock’s position. It is available in two chamberings—.308 Win. and 6.5 mm Creedmoor. The Springfield Armory 2020 Heatseeker has an MSRP of $2,355. For more information, see the company’s website.
