ArmaLite M-15 A2 Carbine

by
  • NRA Staff
posted on July 15, 2012
News, Reviews, Rifles, Semi-Auto Rifles
** When you buy products through the links on our site, we may earn a commission that supports NRA's mission to protect, preserve and defend the Second Amendment. **

A step-by-step photo tutorial on how to fieldstrip the popular Armalite M-15 A2 Carbine.



Gallery

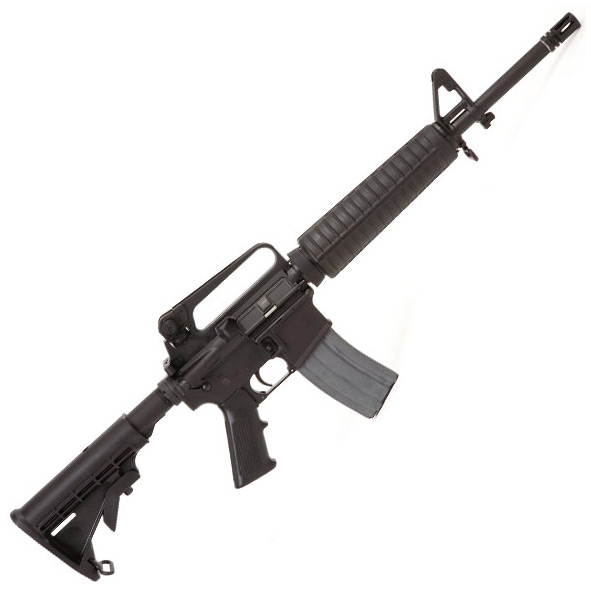

ARMALITE M-15 A2 CARBINE
NRA Staff
1 of 1

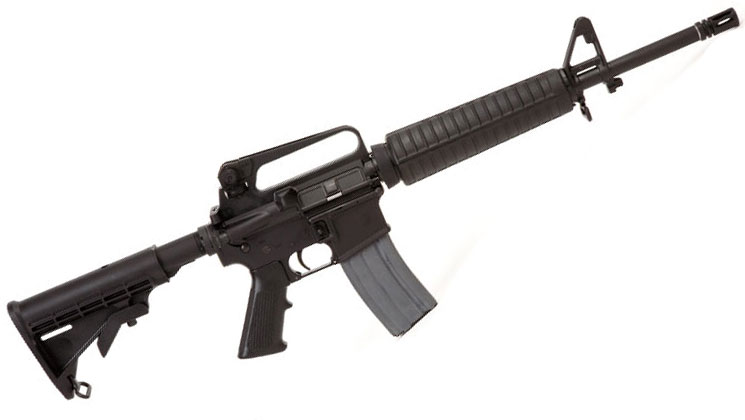

ARMALITE M-15 A2 CARBINE

NRA Staff

Armalite M-15 A2 Carbine

Charging handle
NRA Staff
1 of 1

Charging handle

NRA Staff

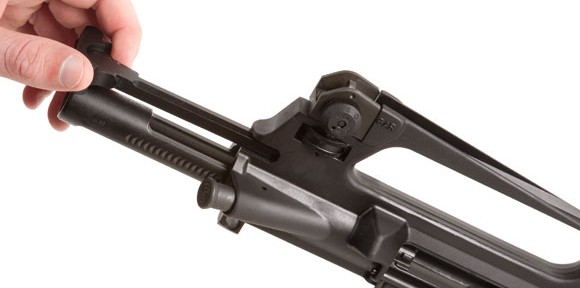

Pull the charging handle to the rear and pull the bolt carrier (31) group from the upper receiver (Fig. 1). Remove the charging handle by dropping it through the recesses in the upper receiver. Depress the buffer retainer (81) to release the buffer (42) and buffer spring (41). Pull the buffer and spring from the receiver extension tube (43).

Retaining pin
NRA Staff
1 of 1

Retaining pin

NRA Staff

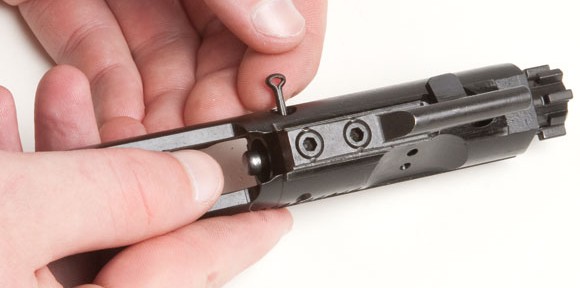

Pull the firing pin retaining pin (29) from the bolt carrier (Fig. 2). Up-end the bolt carrier and let the firing pin (26) fall from the bolt carrier.

Cam pin
NRA Staff
1 of 1

Cam pin

NRA Staff

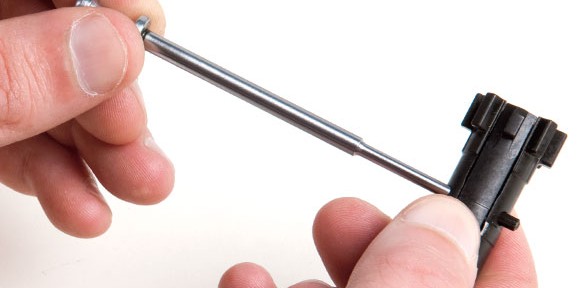

Push the bolt (33) into the carrier, then rotate the cam pin (30) 90 degrees (Fig. 3) and pull it from the carrier.

Bolt
NRA Staff
1 of 1

Bolt

NRA Staff

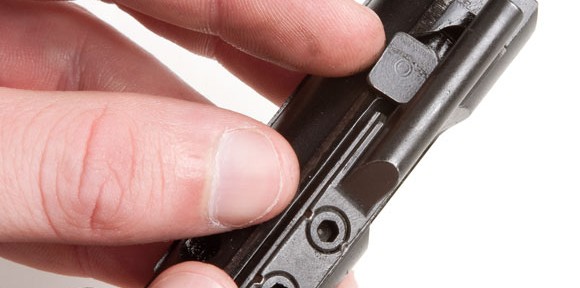

Extract the bolt (Fig. 4).

Extractor pin
NRA Staff
1 of 1

Extractor pin

NRA Staff

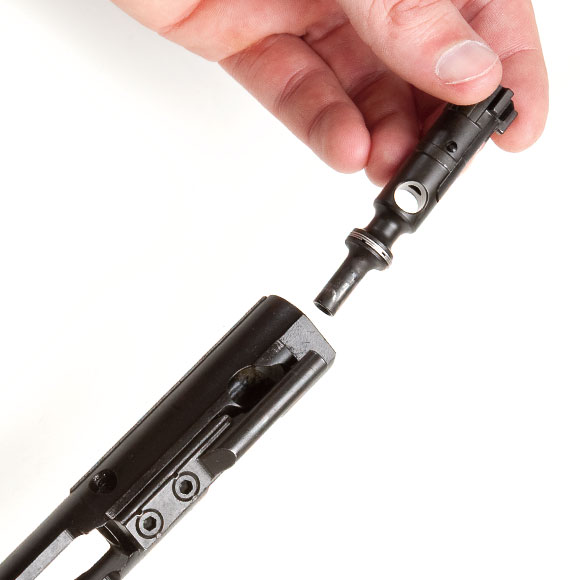

Push the extractor pin (37) out of the bolt (Fig. 5), but be careful with the small extractor spring (35) and extractor spring insert (34). Some easily fall from the extractor (36) and can be lost
