The .38 Special: History & Performance

The .38 Spl. is nothing if not versatile.

by
posted on April 29, 2023
38 Special History Performance 1920X1080

Many don’t realize it, but the double-action revolver dates back to the mid-19th century. One of the earliest was an English creation from the company of Deane and Adams, and was a .456-cal., five-shot cap-and-ball revolver. In America, Ebanezer Townsend Starr designed a .44-cal. double-action percussion revolver with a six-shot cylinder around 1856 and began producing it commercially in 1858, just in time to have it be a part of the American Civil War. When Rollin White patented the bore-through cylinder in April 1855, the concept of a repeating cartridge revolver would soon be combined with a trigger-cocking design that would be the foundation of revolvers to this day.

White—who once had been employed by Colt and had developed his bored-through patent while there—took that patent and several others with him when he parted company with Colt, eventually working out a deal with Smith & Wesson, which had been dabbling with the double-action revolver concept as early as 1872 in some top-break revolvers. Those early efforts had some problems—as do nearly all early designs. Single-action revolvers declined in popularity, the favor went to Colt’s 1878 double-action design and Forehand & Wadsworth double-action, top-break revolvers, which have a more-than-casual resemblance to Smith & Wesson top-breaks. In 1879, James H. Bullard worked up a break-top, double-action revolver design, first a .32-caliber, and later that year a .38-cal. design with a cartridge that became the .38 S&W.

Ammunition comparison side by side picket fence three vertical bullets

Shown (l. to r.): .38 S&W, .38 Spl. and .357 Mag. Image courtesy of author.

Like many firearms’ designs, the first efforts are for lower-powered cartridges in order to get the bugs and manufacturing mechanics worked out, but soon, the demand came for more power. Colt had less-than-acceptable results with its .38 Long Colt cartridge. However, Colt did have a superior—read stronger—design with its solid-frame, swing-out cylinder double action. Smith & Wesson started developing a solid-frame revolver in 1894 dubbed the Hand Ejector, the first of which were chambered in .32 S&W Long and .38 S&W.

Yielding to the demand for more power, Smith & Wesson beefed up and improved its solid-frame revolver it developed into the K-frame in 1899. It was called the Military and Police (M&P) model and was available in .32-20 Winchester Center Fire (WCF) and a new cartridge—designed in 1898—known as the .38 Smith & Wesson Special. Both the revolver and its .38-cal. cartridge would rock the handgun realm worldwide. It is, in a word, ubiquitous.

The .38 Special (Spl.) is dimensionally identical to the .38 Long Colt except for length; the .38 Spl. is 0.529" longer. Too, the .38 Long Colt is derived from the .38 Short Colt, thereby meaning both of the Colt cartridges can be safely fired in a .38 Spl.-chambered firearm. Initially, the .38 Spl. was loaded with 21 grains of blackpowder for a velocity of 775 f.p.s. with a 158-grain lead, round-nose bullet, however, within a year, smokeless powder loads became available.

In 1900, the navy ordered 1,000 M&P revolvers, and the following year, the army did the same. Police departments and target shooters flocked to the M&P revolvers. Colt began chambering its revolvers to .38 Spl. in 1907 with the Police Positive. Just about every manufacturer making revolvers has made or is building .38 Spl. revolvers.

Barrel lengths run from 1 3/4" in snubby revolvers to 10" as the one used in the first-generation Thompson/Center Contender single-shot pistol. Profiles run from pencil-thin, straw-like tubes to massive barrels an inch or more in diameter. The fat barrels are most often custom jobs installed on dedicated target guns. The .38 Spl. made its way into the chambers of derringers and even a semi-automatic target pistol.

Smith & Wessob Model 52 right-side view semi-automatic pistol handgun metal wood

Interestingly, Smith & Wesson made a semi-automatic pistol for use with wadcutter bullets that had a frame based upon its Model 39 but was chambered for .38 Spl. from 1961 to 1993. The Model 52 was expensive to build because of the hand-fitting necessary to guarantee a five-shot group at 50 yards that was 2" or less. Known also as the 38 Master, the Model 52 garnered a lot of championships in competitive bullseye shooting.

Colt also ventured into the wadcutter semi-auto market with its Gold Cup National Match .38 Spl. Mid Range based upon—not surprisingly—its M1911 pistol from 1960 to 1974. Just for grins, I looked up what these two competing semi-autos bring on the current market. Count on a Model 52 to clear $1,500 or so out of your pocket at the time of this writing, and the Colt is bringing $2,500 to $3,500 at the gun auctions.

The .38 Spl. is nothing if not versatile. Bullet weights for factory ammo range from the 90-grain Super Vel Super Snub to the old Winchester Super Police load featuring a 200 grain full-metal-jacket bullet. As a comparison, the Super Vel bullet comes screaming out of a 1 5/8" barrel Smith & Wesson at 1,300 to 1,350 f.p.s. Out of a 4" service revolver, it’s headed downrange at 1,530 f.p.s. The Super Police load was discontinued in the early 1980s, so no velocity quotes were available, but you can certainly figure a bullet twice as heavy as the Super Sub will be loafing along at a much slower pace.

Western Super Match yellow ammunition box text on box mid-range match ammunition wadcutter bullet .38 Special History And Perfornance

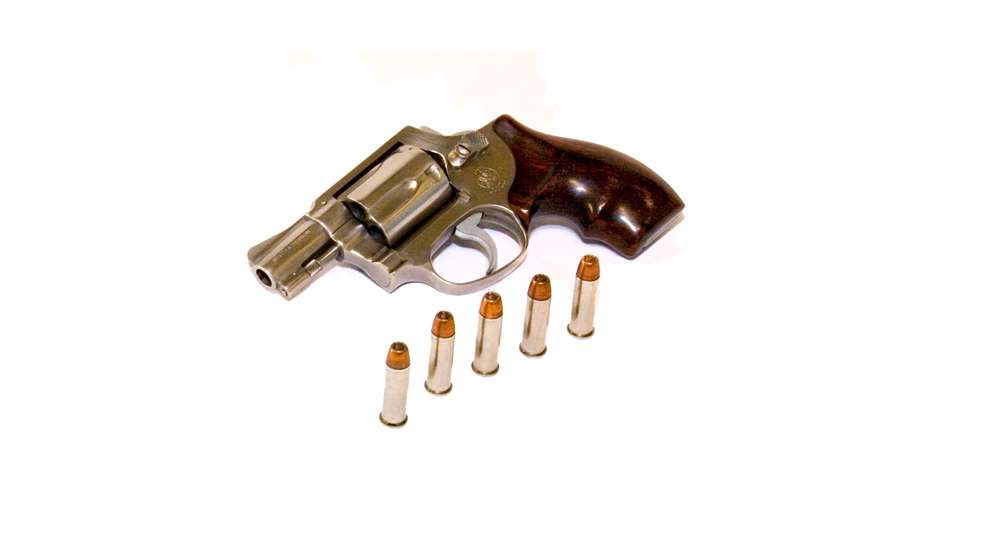

Few, if any, police departments are using the .38 Spl. today. The various 9 mm Luger pistols have pretty much taken over that market. Nonetheless, many of today’s veteran officers slip a .38 Spl. snubby in a coat pocket for those “just-in-case” moments. Too, many concealed carry packers keep a .38 Spl. revolver handy. For those occasions that warrant it, I often have a Smith & Wesson Model 342PD in a pocket holster. Granted the 342PD is chambered in the big-brother .357 Mag., but I carry is stoked with Speer 135-grain, Gold Dot SB (short barrel) .38 Spl. ammo.

Handloaders can improve on factory loads a bit, but unless you are using it in a .357 Mag.-chambered revolver, it’s best to keep the loads sane. The vast majority of my loading experience with the .38 Spl. is in loading wadcutters for practice. In the last half century, I’ve probably loaded somewhere close to 50,000 rounds of these paper hole-punchers. I used to run the standard 3.2 grains of Bullseye in back of a 148-grain wadcutter. Now I use 3 grains of Trail Boss.

There have been literally millions of revolvers chambered in .38 Spl. over its 124-year lifespan. Manufacturing continues to this day from cheap to opulent. The first handgun many of us—including me—ever shot was a .38 Spl. I can’t imagine being without a few of them.
