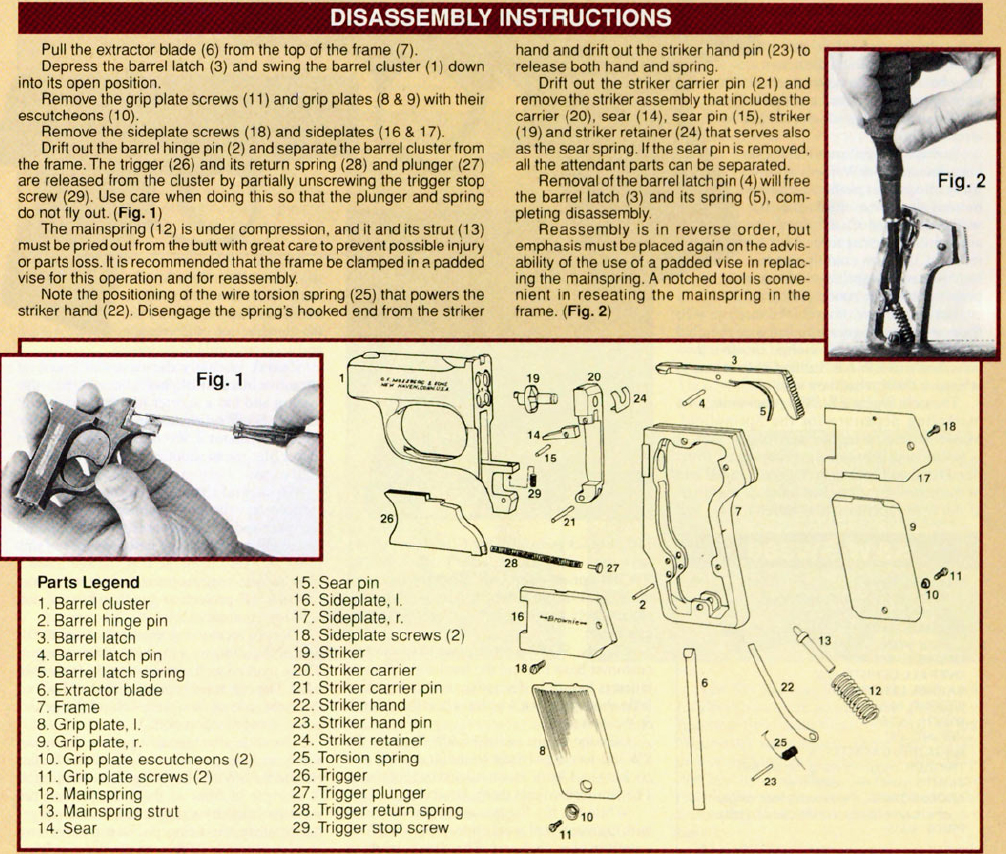

Exploded View: Mossberg Brownie Pistol

This Exploded View first appeared in the September 1995 issue of American Rifleman.

Most of us think of O.F. Mossberg & Sons as a major producer of rifles from 1922 to 1986 and a mammoth shotgun maker today. But founder Oscar Mossberg's first product was neither rifle nor shotgun but a repeating pocket pistol.

In 1919, Mossberg, his sons Iver and Harold, and a single employee set up in a loft in New Haven, Connecticut, and made the first of some 37,000 Brownie pistols that continued in production until 1932. The principles behind the $5-range pistol involved a break-open action; four 2V' barrel tubes that were chambered for the .22 Long Rifle cartridge and rifled in a single cluster; a firing pin that retracted, rotated 900 and then fell after each long trigger pull to fire each chambered cartridge in succession.

Above all, the Brownie offered simplicity and economy in a highly portable package. It was, in a sense, the Sharps derringer brought up to date.
