From the American Rifleman Archives: "In the System:" M1 Garand Rebuilds

posted on December 10, 2015

Originally published in American Rifleman, Dec. 2003

Collectors today often look down their noses at "rebuilt" M1 Garands, but hundreds of thousands of M1s had their useful life extended by several decades through the efforts and dedication of the skill ordnance personnel "in the system."

By Bruce N. Canfield, Contributing Editor

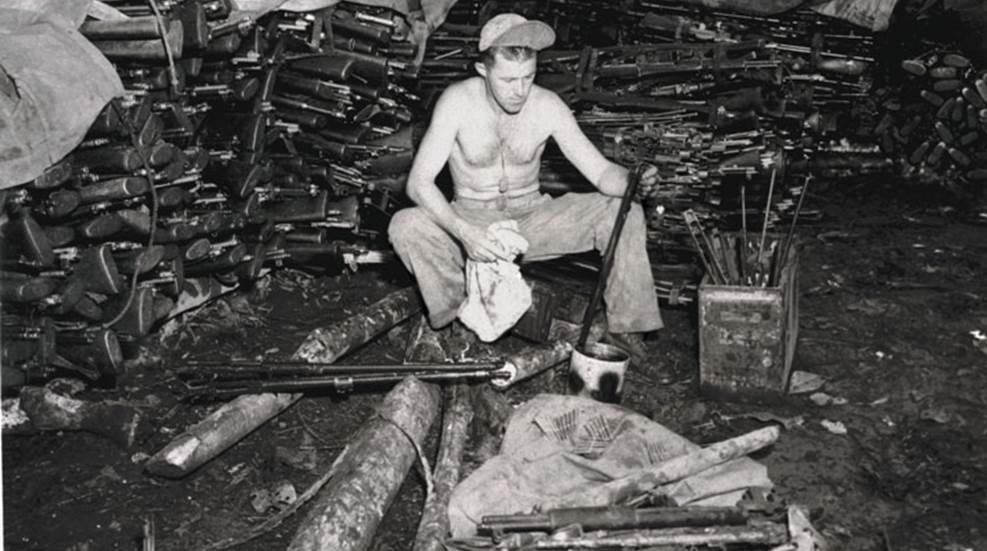

Image above: This member of a U.S. Army Ordnance unit during World War II is cleaning and repairing stacks of salvaged rifles, including many M1s. Such low-level repair and maintenance activities were very common, but substantial repair and modification required the services of a well-equipped ordnance depot or arsenal.

Any mechanical object will eventually require some form of repair or refurbishment, and few objects are subjected to as much use and abuse as military rifles. Whether due to being mishandled by careless recruits or subjected to hard use with little time for cleaning and routine maintenance on the battlefield, virtually all military rifles require varying degrees of repair and maintenance during their tenure of service.

This M1 rifle was rebuilt at Springfield Armory in 1947 and has a mixture of World War II and earlier parts. It has a modified operating rod, modified trigger housing pad, T105E1 rear sights and an "SA/SHM" stock cartouche.

Basic cleaning and simple maintenance were the responsibility of the soldier, but often a rifle needed repair or maintenance to a degree beyond the capability of individuals. Most routine repair and maintenance procedures were performed by military ordnance personnel in the field or at rear echelon ordnance facilities. Such work was referred to as "Third or Fourth Echelon Maintenance Responsibilities" in Ordnance manuals. If more extensive work was need, the arms were sent to an arsenal or ordnance depot, usually in the United States, for overhaul, which was officially referred to as "Fifth Echelon Maintenance Responsibilities."

Few U.S. military arms were manufactured in greater numbers or saw more extensive use than the venerable "U.S. Rifle, Cal., M1" or M1 Garand. From the time of its adoption in 1936 until production ceased in 1957, well over five million M1s were manufactured, and the majority saw widespread service during World War II and the post-war era. Whether carried in combat overseas or subjected to use by recruits in stateside training camps, virtually all M1s were eventually shipped to an ordnance facility for rebuild at some point, sometimes more than once. Rebuilding enabled worn or damaged rifles to be reclaimed and reissued as essentially new guns.

The War Department Technical Manual TM 9-1275, Ordnance Maintenance U.S. Rifles, Cal. 30, M1, M1C (Sniper's) and M1D (Sniper's) dated June 1947, detailed the inspection, maintenance, repair and overhaul of M1 rifles in the post-World War II peridod. (courtesy Chip Walker)

The first significant M1 overhaul occurred prior to 1941 when the so-called "Seventh Round Stoppage" problem arose. The problem was caused by improperly machined receivers, the production tooling changed and the issue quickly became a thing of the past. A number of very early M1s were modified at Springfield Armory to correct the deficiency. A couple of years later, the original gas system of the M1, dubbed the "gas trap," was found to be faulty and an improved "gas port" system was adopted. In late 1940 and early 1941, some of the earlier gas trap rifles were rebuilt by Springfield Armory and converted to gas port configuration. Generally, only the barrels, gas cylinders and stocks were changed, but, otherwise, the rifles retained most of their earlier parts on the very early M1 rebuilds.

Even though Springfield Armory turned out large numbers of M1s during World War II, there was some limited overhaul of M1s--and other arms--during the active war years. Most repair and refurbishment was done by overseas ordnance shops due to the difficulty of shipping large numbers of arms from combat zones to the "Zone of the Interior" (Continental United States). Many M1 rifles that would ordinarily have been overhauled in peacetime were kept in action by the hardworking ordnance personnel in the field or at small base shops. Although such cursory repair work enabled the rifles to continue in service until hostilities ceased, it resulted in large numbers of them needing substantial repair and overhaul at the war's conclusion. After 1945, the mission of Springfield Armory changed from the manufacture the M1 to the overhaul of them, along with other types of small arms.

While the specific type of modifications performed during overhaul varied depending on the type of arm being rebuilt, the general practices were similar. The Ordnance Department developed "flow charts" that described what procures were required to be done when arms were sent to a facility for overhaul. Technical Manuals, such as [i]TM 9-1275[d], detailed the specific procedures to be performed and the equipment (gauges, tools, etc.) necessary for such work.

The World War II-vintage operating rods were subject to cracking at the junction of the handle and tube. They were modified with a post-war relief cut.

When M1 rifles were received by an ordnance facility for overhaul, they were unpacked, serial numbers recorded and the arms were degreased as necessary. They were broken down into the major groups; stock group, barrel group and trigger group. The metal parts, except the barrel, were removed and set aside for inspection and gauging. The wooden components were inspected and repaired, refinished, or discarded as necessary. Barrels and receivers were inspected and gauged to make sure they were within "specs." Any barrels that proved unusable--due to substantial pitting, wear or excessive throat erosion--were removed from their receivers and scrapped. Receivers passing inspection were refinished (reparkerized) as required. The other metal components were inspected and gauged. Parts passing inspection were placed in storage bins for subsequent use. Superseded (obsolete) components were replaced, and those that required modification for continued use were altered as necessary. Major components specific to the M1 that required replacement or modification for continued use were:

Rear Sights: The improved T105E1 rear sight had been adopted near the end of World War II but was not utilized in rifles produced before the end of the war. After circa 1947, most M1s overhauled in ordnance depots had the earlier sights removed and the updated T105E1 pattern sights fitted.

Most World War II and earlier rear sights, such as the "locking bar" type (top), were replaced by the updated T105E1 variety (above) during the post-World War II rebuild process. By the 1950s, almost all M1s overhauled were re-equipped with the T105E1 units.

Some of the World War II-vintage "locking bar" rear sights were retained when the rifles were overhauled after the war, presumably due to a shortage T105E1s. By the early 1950s, however, virtually all arsenal overhauled M1s were fitted with the updated rear sights.

Operating Rods: The original pattern was found to be subject to cracking at the juncture of the handle and tube. To alleviate this problem, a portion of the earlier rods were milled away as part of the rebuild procedure. World War II and earlier vintage operating rods were modified by the addition of the relief cut modification. Springfield Armory manufactured large quantities of new operating rods with an integral relief cut that were marked "D35382"for replacement purposes after the war. To illustrate the large number of new operating rods needed for the extensive post- World War II rebuild programs, Springfield Armory manufactured a total of 529,172 replacement M1 operating rods between Fiscal Years 1945 and 1948.

Trigger Housing Pads: From the beginning of production until the middle of World War II, M1 rifle trigger housings were manufactured with a raised portion, termed a "pad," which was intended to function as a hammer stop. The original-size pad could sometimes interfere with proper operation of the hammer, and subsequent trigger housings were made with a smaller pad. Post-war rebuild standards specified that the earlier trigger housings have the large pads milled down to smaller pad configuration.

Barrels: Although the basic configuration of the M1's barrel did not change after World War II, a large number of rifles sent in for overhaul had unsalvageable barrels due, in large measure, to the use of corrosive ammunition. Extreme wear and tear and improper cleaning also contributed to the large number of barrels that needed replacing. Springfield Armory manufactured 563,310 new replacement barrels between Fiscal Years 1945 and 1948.

Stocks and Handguards: As was the case with barrels, the basic configuration of the M1 s stock and handguards did not change after World War II. But the wooden components were less durable than most metal parts, and broken, cracked or otherwise unusable stocks and handguards were common. Stocks and handguards with minor gouges or cracks were repaired by adding "plastic wood" or by inserting brass reinforcing screws and grinding off the screws flush. Broken or worn stocks were salvaged by adding strips of wood along both sides near the bottom of the magazine area to allow the trigger housing to lock up tightly. While such repairs might be considered unsightly in the eyes of today's collectors, the ordnance workers were only interested in salvaging otherwise useable material and putting as many rifles back into serviceable condition as fast and as inexpensively as possible.

In addition to the repaired stocks and handguards, a number of newly made replacement stocks were fabricated after the war. Between Fiscal Years 1945 and 1948, Springfield made 291,971 replacement stocks. Compared to stocks, M1 handguards were much more prone to damage and were less suitable for repair as illustrated by the number of replacement handguards fabricated by Springfield during the same period: 787,307 front and 893,736 rear handguards.

The above-discussed parts were not the only components needing replacement or modification during overhaul. Indeed virtually all parts of the M1 rifle were subject to replacement, repair or modification.

Anniston Army Depot (Alabama) used "AN" often followed by a letter suffix, as well as the "A4" stamp. The "RRAD" stamp indicates overhaul at Red River Army Depot (Texas) in the post World War II period. When named Red River Arsenal, the stocks were stamped "RRA."


The "RIA/EB" stamp signifies the rifle was overhauled at Rock Island Arsenal under the supervision of Elmer Bjerke between 1947 to 1958. The "SA/JLG" stock cartouche represents Col. James L. Guion, commanding officer of Springfield Armory from July 1950 to May 1953. New M1 production and overhauls of earlier M1 rifles both occurred during his tenure.

Ordnance Overhaul Entities
Springfield Armory: After a rifle was overhauled, ordnance regulations required that the identity of the ordnance facility that performed the rebuild be stamped on the stock. If a rifle had previously been overhauled by the same entity, it was not necessary to re-stamp the stock, although this happened in some cases. For rifles overhauled at Springfield Armory from circa November 1945 to August 1947, a cartouche consisting of "SA/SHM" was stamped on the left side of the stock. "SA" identified Springfield Armory as the overhaul facility and "SHM" represented Col. Stephen H. McGregor, commanding officer of the Armory during this period. World War II vintage stocks that were recycled for use after the war (and stamped "SA/SHM") often retained their original 1941-1945 factory inspection cartouche, thus two different stamps of different vintages may be encountered on the same stock. After Col. McGregor's departure from Springfield, several types of inspection stamps were used. "SA/SPG" represented Stanley P. Gibbs, a civilian inspector who had worked at Springfield for many years and who inspected overhauled M1s until circa 1950. Gibbs' stamp was similar to the original factory inspection stamp used on the early gas trap M1s made from 1936 to 1940.

This Ordnance hang tag attached to an M1 deontes a rebuild at an arsenal or depot as evidenced by the wording "Repairs Required Beyond 4th Echelon Maint."

In July 1950, Col. James L. Guion was posted to Springfield Armory as commanding officer. M1 rifles overhauled after Col. Guion's took command of the Armory were stamped "SA/JLG" on the stock's left side. A similar final inspection stamp was also used on newly made M1s when the production line reopened in the early 1950s. When new M1 production began, use of the "SA/JLG" rebuild stamp ceased, and it was replaced by a rebuild stamp consisting of "SA", often enclosed in a three or four cornered box. Many of these stamps also had a one or two letter code to identify the inspector who supervised the procedure. This "SA" rebuild stamp was most commonly applied to the left side of the butt. This same type of rebuild stamp was used on many M1 rifles converted to M1D sniper configuration during this period, and the stamp was often hidden by the leather cheek pad found on the sniper rifles.

A number of M1 rifles overhauled at Springfield Armory in 1952 were marked "SA-52" behind the rear sight. Some M1C sniper rifle receivers converted to M1 specifications by plugging the three holes drilled into the left side may also be found with this "SA-52" marking. Applying these markings on the receiver was a departure from the previous practice of stamping rebuild markings on the stocks and only lasted for a one year.

Rock Island Arsenal: Springfield Armory was not the only large government Ordnance facility to overhaul M1s after the war. Rock Island Arsenal, in Illinois, rebuilt large numbers of M1 rifles and myriad other arms from 1941 until the late 1950s. Unlike Springfield Armory, Rock Island did not manufacture large quantities of replacement parts for the M1.

The scope and nature of the rebuild work performed at Rock Island paralleled that of Springfield. M1 rifles, and other arms, rebuilt at Rock Island Arsenal were stamped on the stock with a stamp consisting of "RIA" over the initials of the foreman of small arms inspection at the Arsenal. From 1941 to 1946, the stamp was "RIA/FK" for Rock Island Arsenal/Frank Krack, who was the foreman during this period. After Krack's retirement, the stamp was changed to "RIA/EB" for Elmer Bjerke who held the position from 1947 to 1958. Therefore, the time frame that a particular arm was overhauled can be ascertained by the initials on the stamp.

The top "P" stamp on an M1 rifle's grip (circled P) is the original factory proofmarking, while the lower marking--a "P" enclosed in a square box--is a post-war arsenal overhaul proof stamp.

Other Ordnance Facilities
Other ordnance facilities that overhauled M1s, along with other types of arms, during the post- WWII period into the 1950s and 1960s were Augusta Arsenal (Georgia), San Antonio Arsenal (Texas), Benicia Arsenal (California), Raritan Arsenal (New Jersey), Anniston Arsenal (Alabama), Hawaii Ordnance Depot, Mt. Rainer Ordnance Depot (Washington) and Ogden Arsenal (Utah). As the case with Springfield Armory and Rock Island Arsenal, the arms overhauled by these arsenals and depots were stamped on the stock, usually but not always on the left side, as follows:

Augusta Arsenal—"AA"—Typically with a letter suffix (presumed to represent the inspector who supervised the overhaul). Later a number suffix (typically four digits) was sometimes added. These markings may be found stamped on the either left or right side of the stock.

Benicia Arsenal—"BA"—Usually consisting "BA" over inspector's initials and enclosed in a box stamped on the left side of the stock.

Hawaii Ordnance Depot—"HOD"—Sometimes followed by inspector's initials. Stamped on left side of stock.

San Antonio Arsenal—"SAA"—Usually with a letter prefix. Stamped on left or right side of stock.

Ogden Arsenal—"OG"—Often with "E.K". or "EK" suffix. The "OG" or " OGEK/O.G.E.K" stamp may or may not be enclosed in a box. Note: "O.G.E.K." (enclosed in a box) signified Ogden Arsenal inspector Elmer Keith and "OGEK" (not enclosed) signified inspector Ed Klouser. Keith gained fame as a gun writer in the 1940s and 1950s.

Anniston Army Depot—"AN"—Often followed by a letter suffix.

Mt. Rainier Ordnance Depot—"MR"—Stamped on left side of stock.

Raritan Arsenal—"RA" or "RA-P"—The "P" is presumed to indicate that the rifle was proof fired as part of the overhaul procedure and was not an inspector initial as was the case with the other arsenals. The "RA" should not be confused with the Remington Arms ("RA") stamp found on the stocks of World War II '03, '03A3 and '03A4 rifles made by that firm.

Red River Arsenal—"RRA"—Later renamed Red River Army Depot—"RRAD"—Markings found with and without periods. The 1960s vintage rebuilds usually have a boxed "P" proofmark stamped on the pistol grip.

Later 1960s M1 Rebuilds
As the Vietnam War heated up in the mid 1960s, additional M1s in the government's inventory were need as supplemental service rifles and for military foreign aid requirements. Several U.S. government ordnance facilities were given contracts for the overhaul of more M1s during this period. M1s overhaul work in the 1960s was done primarily by Tooele Army Depot (Utah) and Letterkenny Army Depot (Pennsylvania). Red River Army Depot and Springfield Armory also overhauled some M1s into the 1960s as well. Unlike the earlier rebuild markings, which were stamped on the stock, these facilities typically utilized identity codes that were hand-etched on the right side of the receiver leg by electric pen. In most cases, the code was accompanied by the month and year that the rebuild was performed.

The facilities and codes on the receiver legs were as follows:
Letterkenny Army Depot, "LEAD"; Tooele Army Depot, "TE"; Springfield Armory, "SA"; Red River Arsenal /Red River Army Depot, "RRA" or "RRAD"; In addition to overhauling M1 rifles in the 1960s, Tooele Army Depot converted a number of M1 rifles to M1D sniper configuration.

Most of the above-referenced ordnance facilities also overhauled other types of small arms in addition to M1 rifles, including .30 caliber carbines, M1911/M1911A1 .45 pistols, '03 rifles (and variants), submachine guns, BARs and other arms. Some of the facilities stamped a "P" proof mark on the pistol grip of the stock after the rifles were proof fired as part of the final overhaul inspection procedure. Unlike factory proof stamps which consisted of a circled "P", the overhaul proof stamps were either a block letter "P" enclosed in a square or by itself.

Rifles that were overhauled at overseas ordnance installations were not required to have the initials of the facility stamped on the stock or engraved in the metal, thus not all rebuilt arms will have overhaul stamps. It should be mentioned that the presence of an arsenal or depot stamp does not always indicate that the arm was actually overhauled. Some guns in excellent, or even near new condition, were sent to the facilities for inspection, minor repair and cleaning but did not require rebuild. Such arms were usually stamped on the stock to indicate they were cycled through the arsenal or depot but may have been otherwise untouched. This was more common for arms, such as '03A3 rifles, which didn t require the replacement of many obsolete or superseded parts. Some M1 rifles in serviceable condition sent to ordnance facilities for inspection may have only had superseded parts, such as rear sights and unmodified operating rods, replaced but otherwise remained primarily in their original factory configuration.

Large number of M1 rifles have been sold by the Civilian Marksmanship Program (CMP) over the past few years, and the vast majority have been rebuilt one or more times. Martial arms collectors typically prefer unmodified rifles and have traditionally looked down their noses at rebuilt rifles. However, arsenal overhauled M1 rifles are beginning to be recognized as legitimate collectibles in their own right. The majority of M1 rifles issued to our troops after World War II had been overhauled and have served our armed forces well.

Recycling such items as aluminum cans, paper and plastic containers has become a popular trend over the past few years. The Ordnance Department was recycling M1 rifles and other arms for many years in order to keep our fighting men armed with serviceable and efficient arms. A worn or damaged M1 rifle that was arsenal overhauled was rebuilt to the same exacting standards as a rifle just off the assembly line but at a fraction of the cost. Hundreds of thousands of M1s had their useful life extended by several decades through the efforts and dedication of the skill ordnance personnel "In the System."
